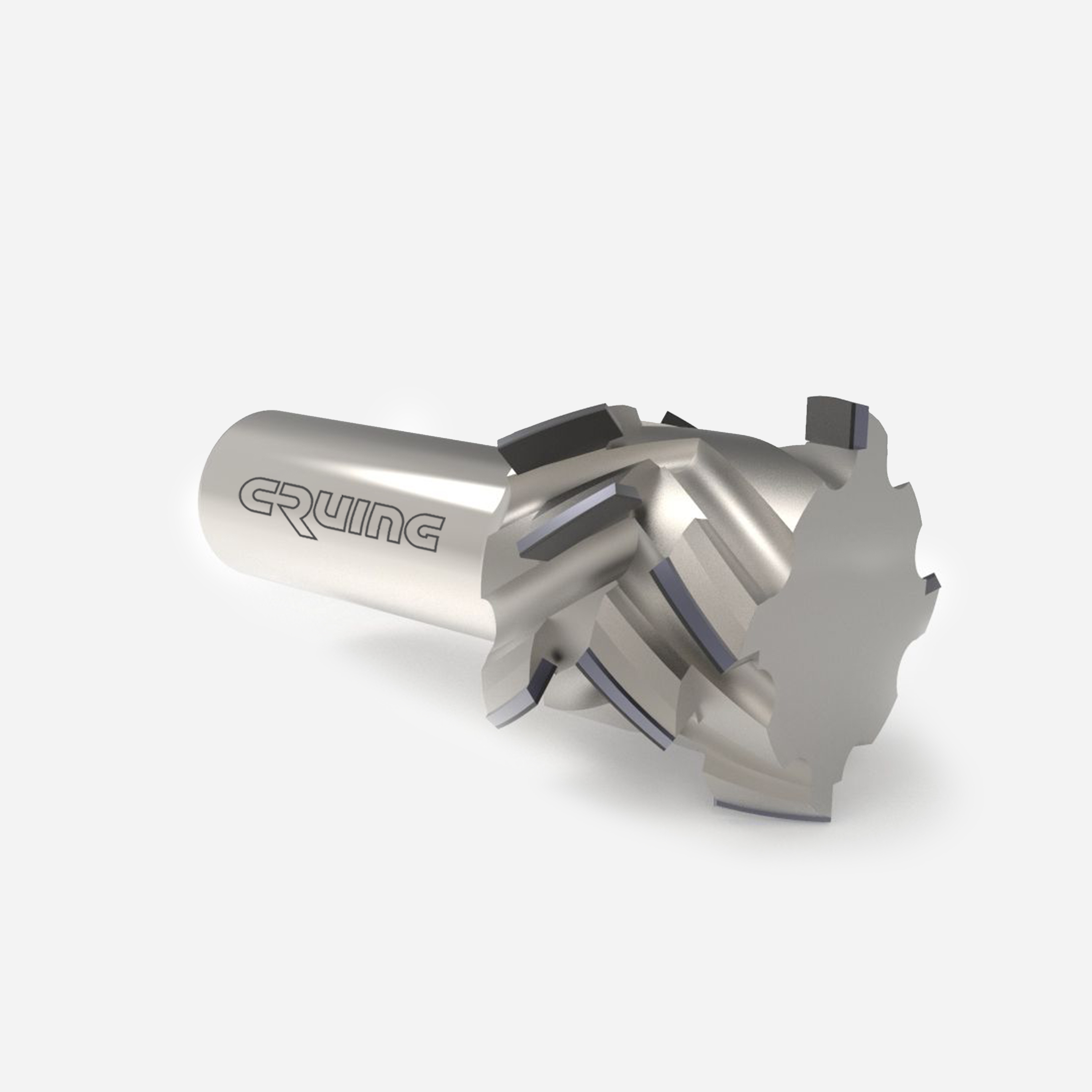

Mach 4
Z4+2+4 Trimming
Applications
Cutter with Cylindrical Shank, good cutting quality on top and botom edge thanks to symmetric shear angle, cutting angle 40° steel body, for CNC routers for jointing, rabbeting, grooving and copying in Particleboards, MDF boards, Laminates, HPL and veneered panels, Solid hard woods
Technical features
ø: 48mm
- Feed speed: up to 35 mt/min
- shear angle: 40° (54° available on request)
- 4+2+4 PCD cutting edges
- Steel body
- Design: 8 flute
- High performance
- Good cutting quality on top and bottom edge thanks to symmetric shear angle
- Resharpenable router (max 8 times)
| D | d | L2 | L1 | L3 | Z | HDP | Code (LH) | Code (RH) |
|---|---|---|---|---|---|---|---|---|
| 48 | 25 | 22 | 85 | 55 | 4+2+4 | 5.0 | DP440S005S | DP440S005D |
| 48 | 25 | 28 | 91 | 55 | 4+2+4 | 5.0 | DP440S010S | DP440S010D |
| 48 | 25 | 35 | 98 | 55 | 4+2+4 | 5.0 | DP440S015S | DP440S015D |
| 48 | 25 | 48 | 110 | 55 | 4+2+4 | 5.0 | DP440S020S | DP440S020D |
